Common mode
UU series
● Designed as closed magnetic circuit, with high reliability.
● Small volume, light weight, fixed pins, easy for plug-in installation on PCB.
● There are two types as vertical type and horizontal type, which are applicable to different demands of packaging.

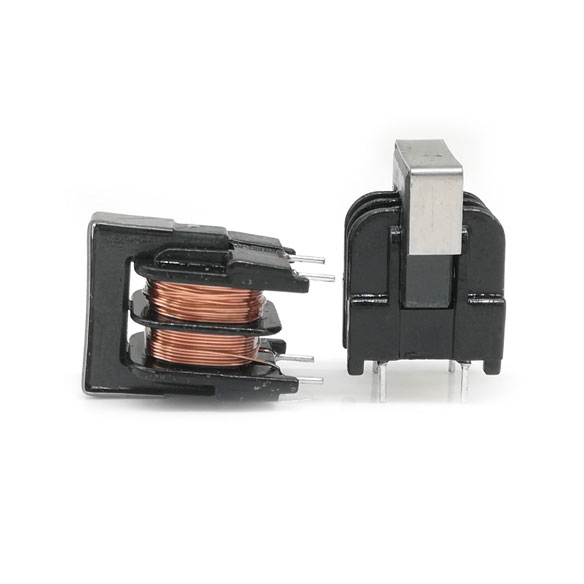

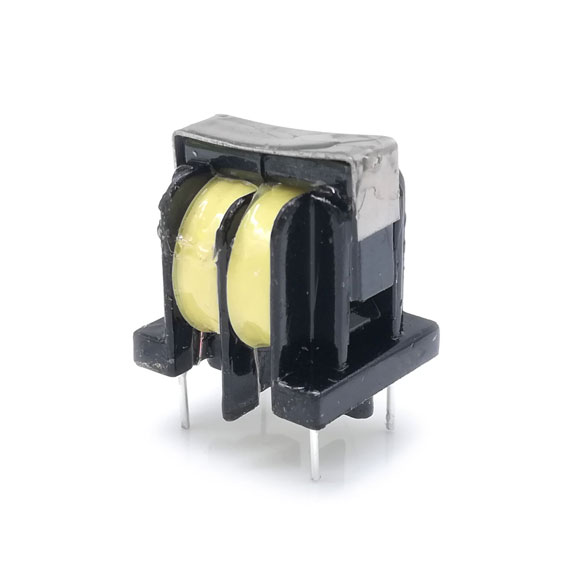

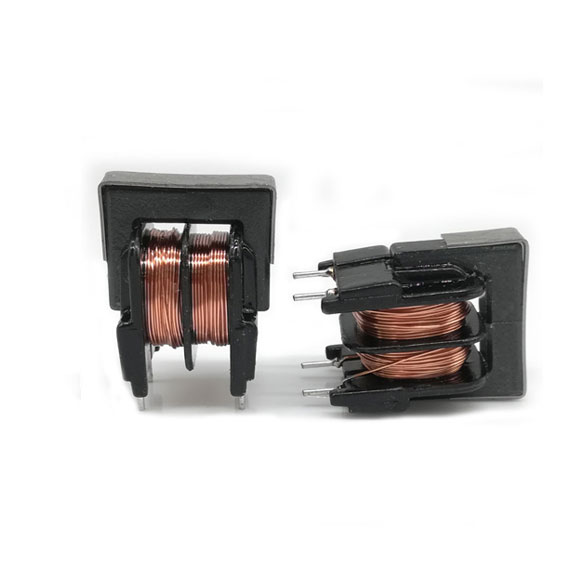

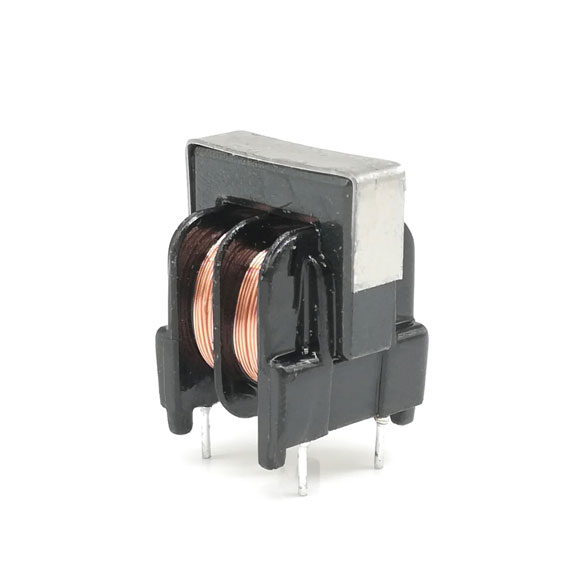

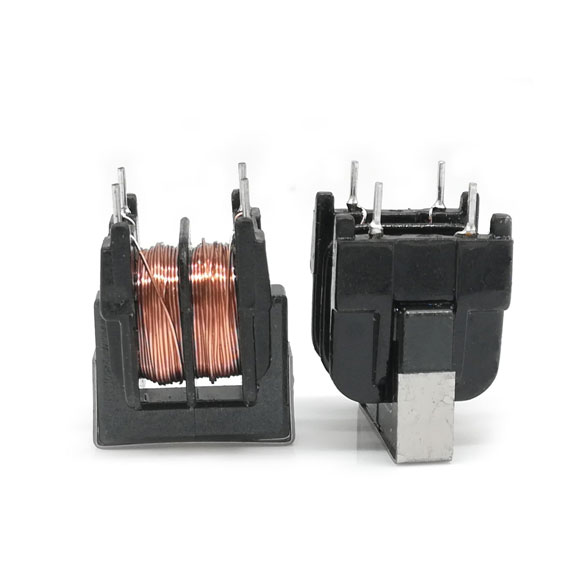

● Common sizes contain UU9.8, UU10.5 and UU16.
UU series

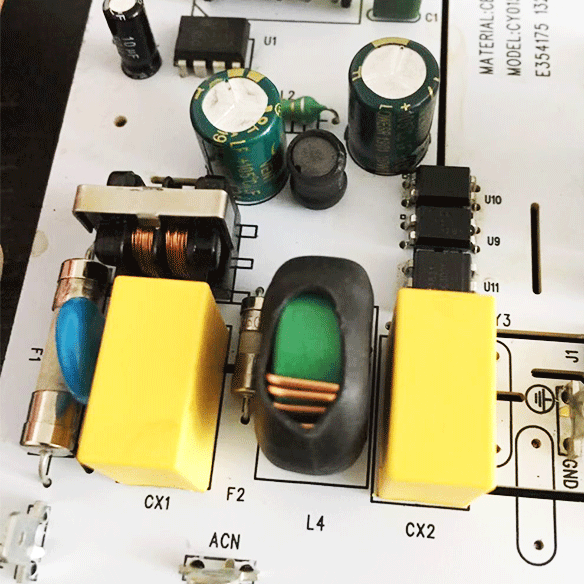

● Mainly used on AC power supply for EMI suppression to remove the common mode noise at low frequency.
● Also generally used for driving transformer and current transformer.
P/N Description:
UU 9.8 203 P
UU --------------- Series name
9.8 ---------------- Dimensions
203 --------------- Inductance【203=20mH】
P ---------------- Tolerance【P=Min】
