—— Chip wound inductor ——

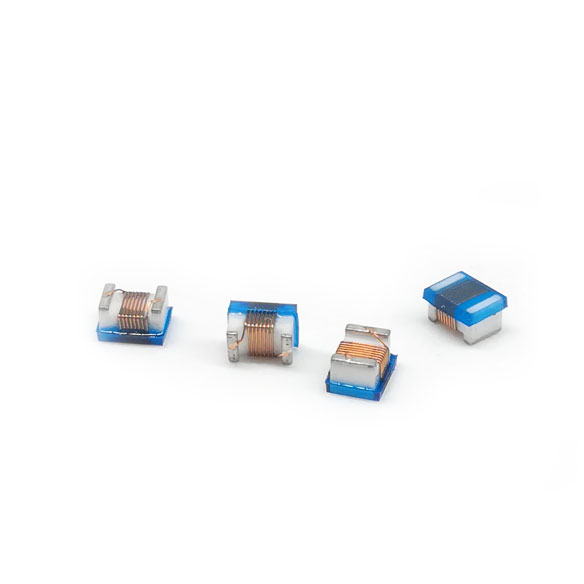

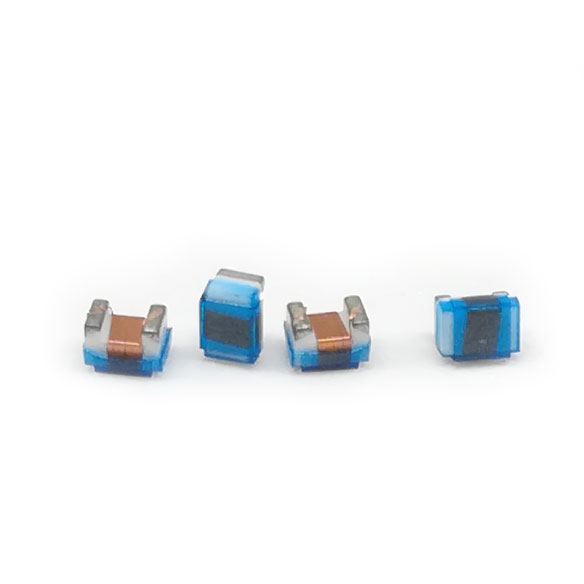

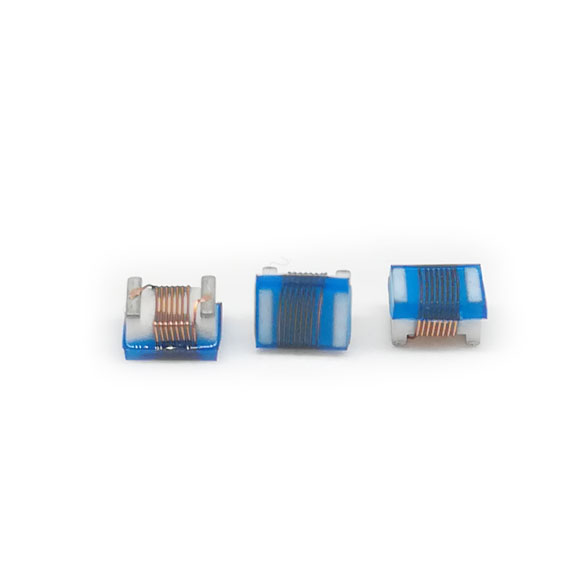

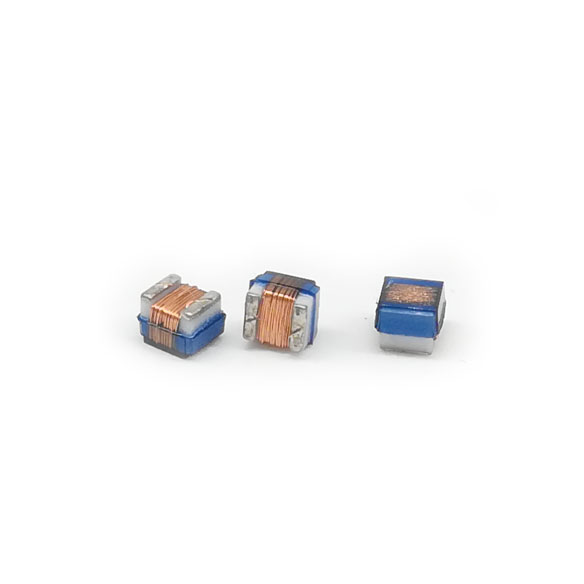

Ceramic winding inductor - CF series
● Winding inductor for RF signals.
● The combination of ceramic body and winding, provides the 0402-1812 size with the best SRFs.
● The Q value is pretty high.
● The operating temperature spans from -44℃ to 125℃.
● With lower DC resistance, and a higher current can be loaded.
● Non-magnetic winding mode, ensure the product's thermal stability, predictability and the conformity during mass production.
Ceramic winding inductor - CF series
● Applicable for data processing systems of electronic devices.
● For mobile communication terminal devices.
● For EMI countermeasures in high frequnecy fields.
● Used for flat panel TV, set-top box, camera and smart phone.
● Personal navigation system, multi-media and mobile terminal.
● Communication devices, VR, etc.
P/N Description:
CF 10 - 12N K T
CF ----------------- Series name
10 ----------------- Size code
12N ---------------- Inductance【12N=12nH】
K ------------------ Tolerance【 K= 10%】
T ------------------- Tape packaging
