—— Chip wound inductor ——

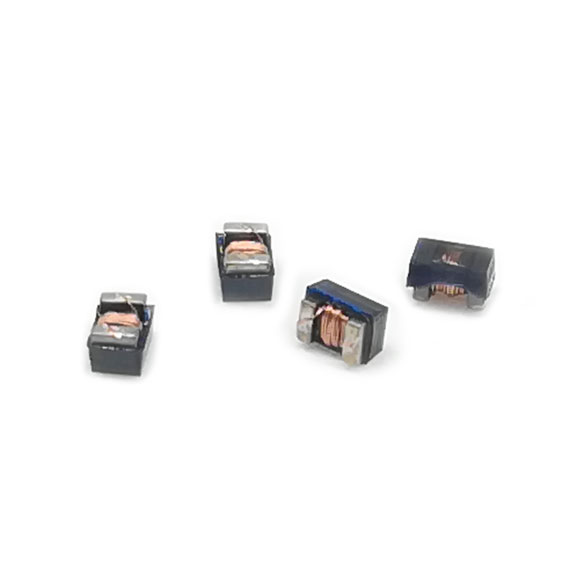

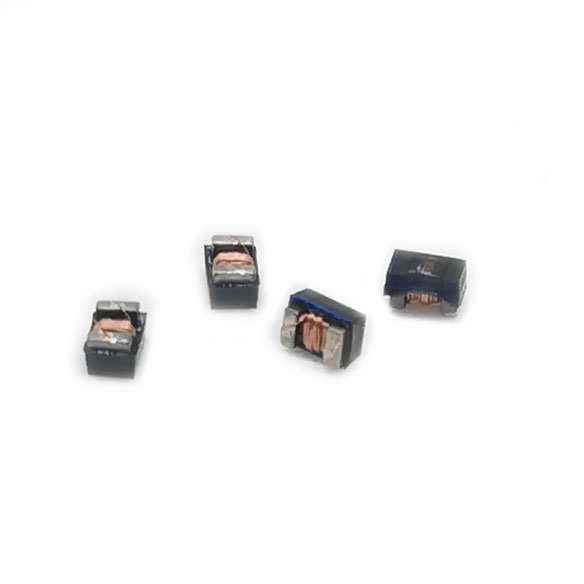

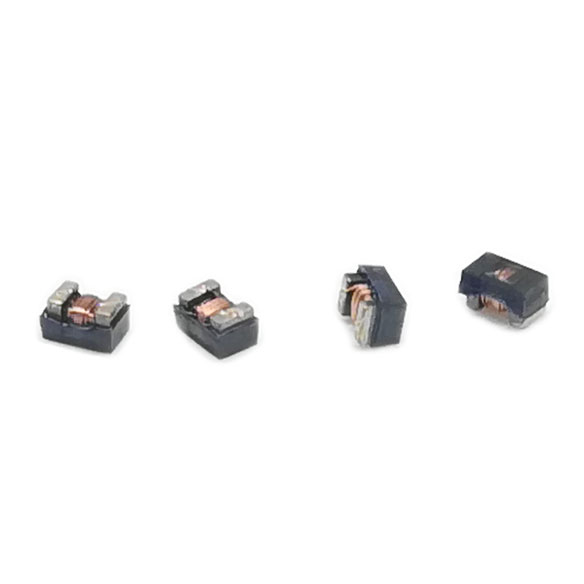

Ferrite winding inductor - CG series

Description

● Winding wire on the ferrite core makes a higher Q value.


● Compared to multilayer products, a higher current can be loaded.


● With a lower DC resistance value and a higher self-harmonic frequency.


● Operating temperature spans from -44℃ to 125℃.


● With a great resistance to pressure and machinical impact.


● It has a better reliability in the environment where the termperature and humidity change abruptly.

Ferrite winding inductor - CG series

Application

● Applicable for data processing systems of electronic devices.


● Used on miniature TV, crystal TV, camera, portable video recorder.


● For automotive devices such as radio, audio, blutooth, etc.


● For TV tuner, mobile phone and other consuming phone devices.


Demodulator, OA product, TV, video recorder, etc.

Parameters


                                              P/N Description:


                                              CG 12 - 150 K T


                                                                     CG ------------------ Series name


                                                                     12 ------------------- Size code


                                                                     150 ----------------- Inductance【150=15µH


                                                                      K ------------------- Tolerance【 K= 10%】


                                                                      T ------------------- Tape packaging



CG Series
