—— Chip wound inductor ——

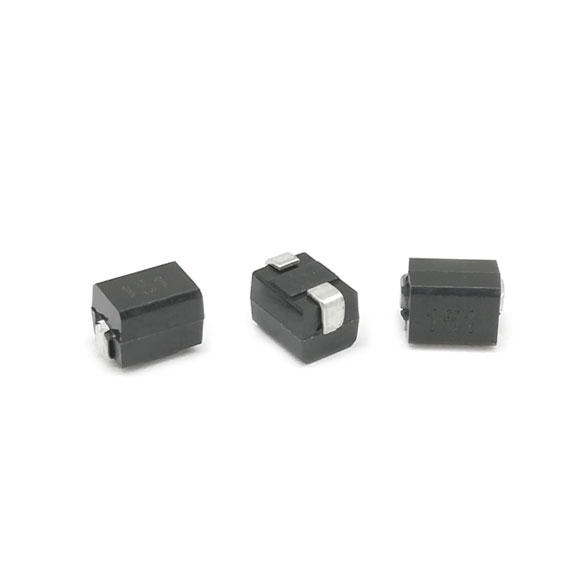

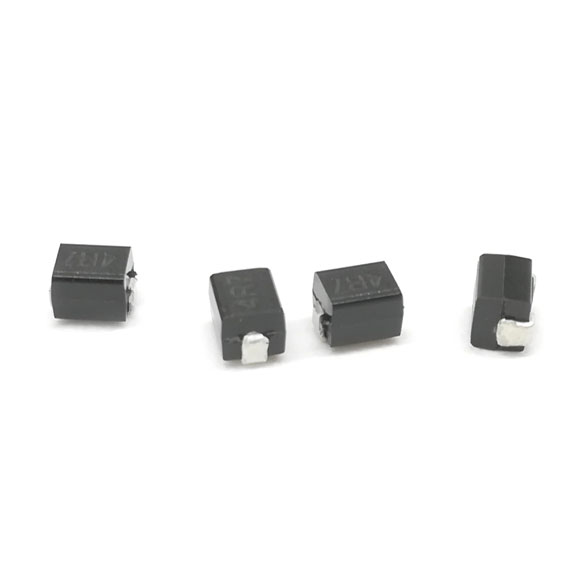

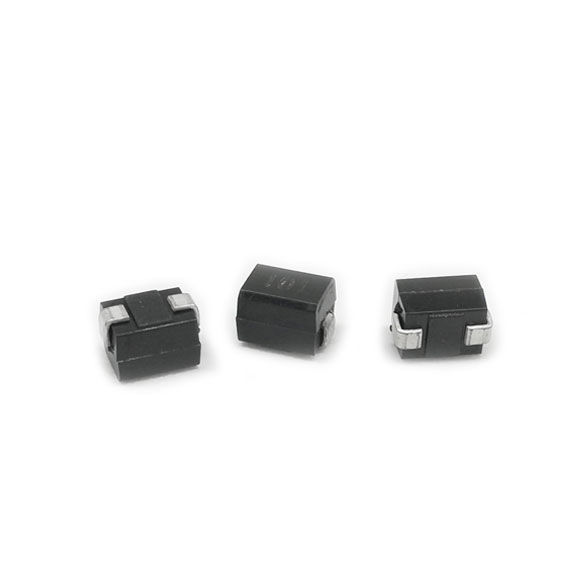

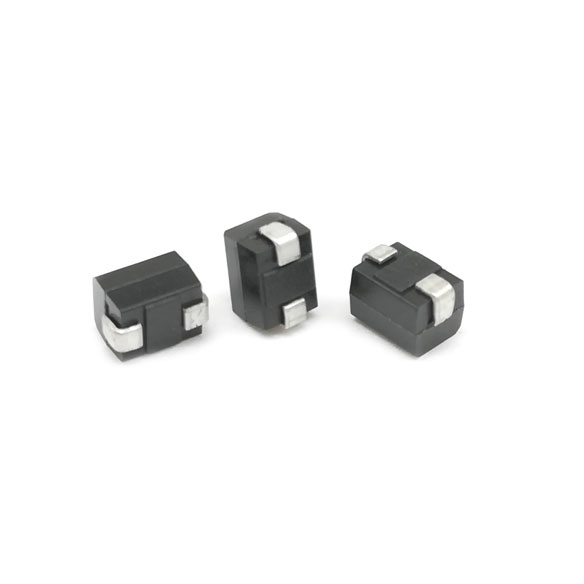

Winding chip inductor - M series

Description

● Winding chip inductor for normal singal lines.


● Covered by heat-resisting resin, with good ability of bearing high temperature and high humidity.


● With good tolerance for machinical impact and salt spray corrosion.


● With precise dimensions, good for automatic SMT.


● With good weldability and soldering resistance, applicable to reflow soldering.

Winding chip inductor - M series

Application

● Applicable for data processing systems of electronic devices.


● Used for computer product like hard disk and soft disk.


● For communication products, for example, wireless telephone.


● Demodulator, OA product, TV, video recorder, etc.


● Comply with CE and FCC.

Parameters


                                              P/N Description:


                                              M 1812 120 K T


                                                                     M ------------------ Series name


                                                                     1812 --------------- Size code


                                                                     120 ---------------- Inductance【120=12 µH


                                                                      K ------------------ Tolerance【 K= 10%】


                                                                      T ------------------- Tape packaging


M Series
