—— BOK Series ——

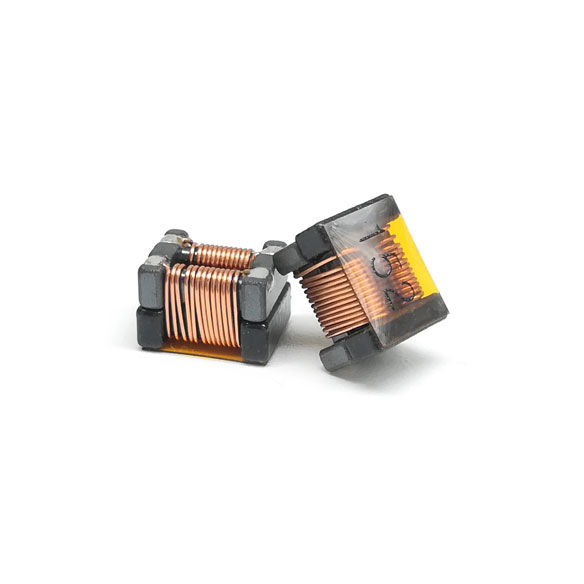

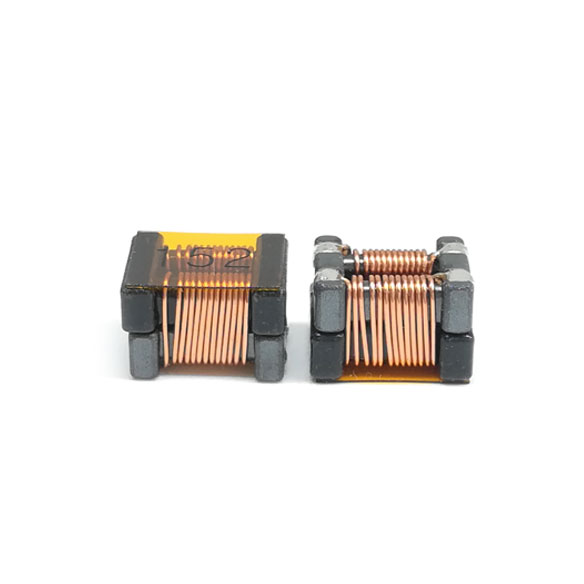

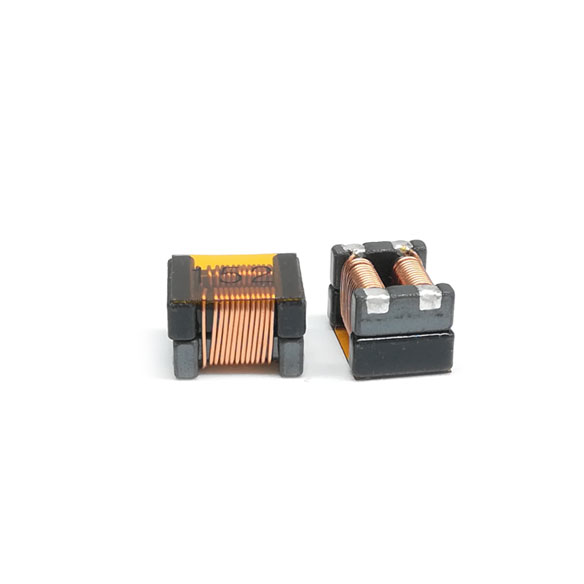

BOK-H
● The first choice for low-frequency noise suppression.
● The MnZn combined winding mode has a very high impedance for frequency range below 300MHz, which makes an effective noise suppression.
● The rated current can reach up to 17A.
● The impedance against common mode noise spans from 250Ω to 6000Ω, which gives play to a great effect of suppressing noise.
● Since differential-mode signal is suppressed in a lower level, there is little effect on high-level signals.
● The addition of top-plate make it more convenient for surface adsorption.
● Reserving the characteristics of common mode inductor, this winding common mode filter achieves obvious miniaturization and shortening in appearance.
BOK-H
● Used to solve noise problem of all kinds of electronic devices' power lines.
● Solve noise problem of adapter line and battery cable for large electronic devices such as laptop, word processor, etc.
● Noise suppression for mobile charger, medical product and LED display.
● LVDS and Panel Link line of liquid crystal display panels.
P/N Description:
BOK 7AH 15A30 T
BOK ----------- Series name
7AH ----------- Size code
15A30 --------- 1500Ω/3A
T -------------- Tape packaging
