—— BOK Series ——

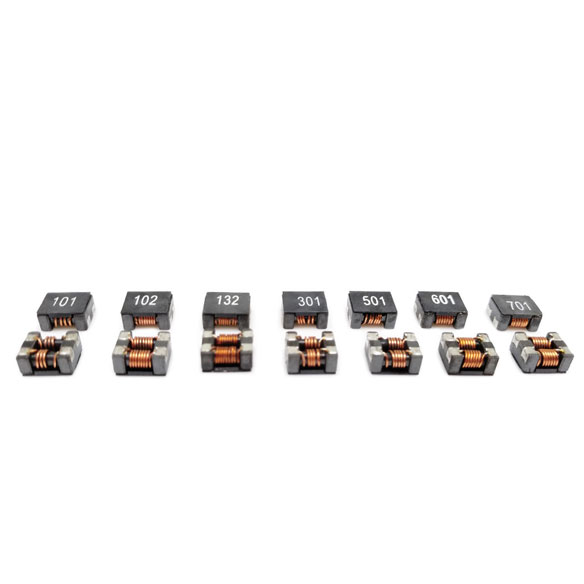

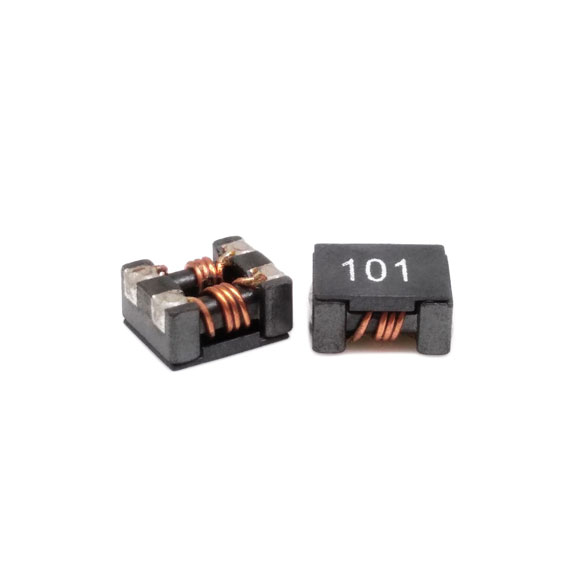

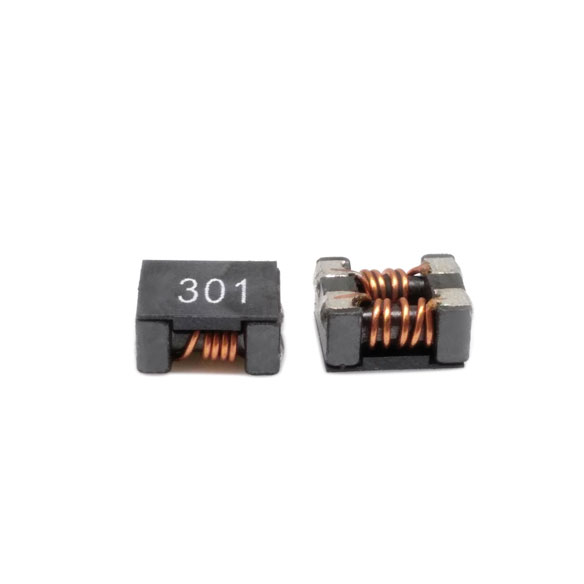

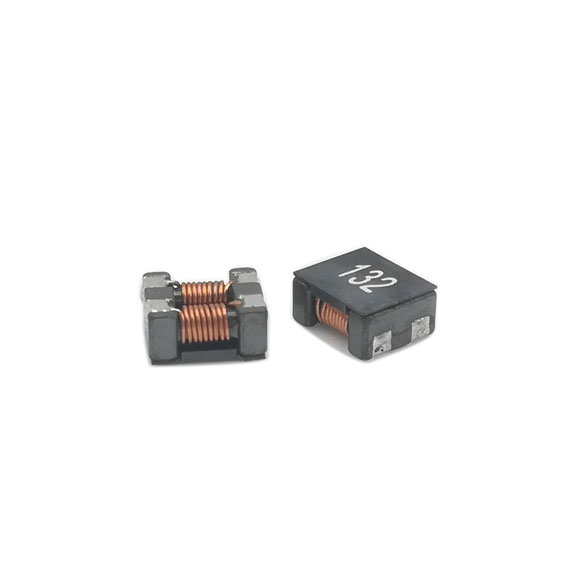

BOK6E
● The two-in-two-out design of winding mode can cover a wide frequency range of EMC noise suppression.
● A larger rated current ranging from 15A to 0.9A.
● The impedance against common mode noise spans from 40Ω to 3000Ω, which gives play to a great effect of suppressing noise.
● Since differential-mode signal is suppressed in a lower level, there is little effect on high-level signals.
● The addition of top-plate make it more convenient for surface adsorption.
● Reserving the characteristics of common mode inductor, this winding common mode filter achieves obvious miniaturization and shortening in appearance.
● The small-size SMD design, applicable for reflow soldering, expedites the speed of automatic production.
BOK6E

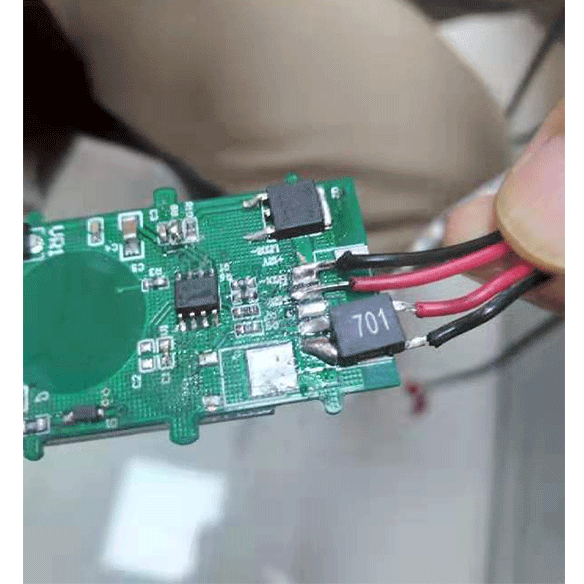

● Used to solve noise problem of all kinds of electronic devices' power lines.
● Solve noise problem of adapter line and battery cable for large electronic devices such as laptop, word processor, etc.
● Noise suppression for mobile charger, medical product and LED display.
● LVDS and Panel Link line of liquid crystal display panels.
P/N Description:
BOK 6E 10A 30 T
BOK -------- Series name
6E ---------- Size code
10A -------- Parameter value
30 ----------- 3A current
T ------------ Tape packaging
