—— Plug-in type ——

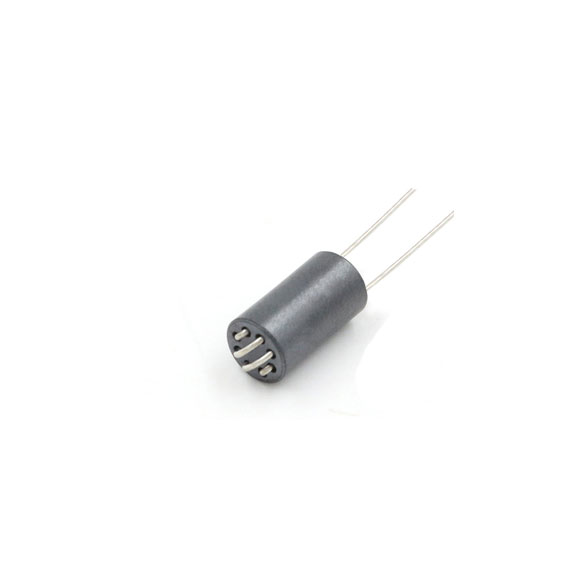

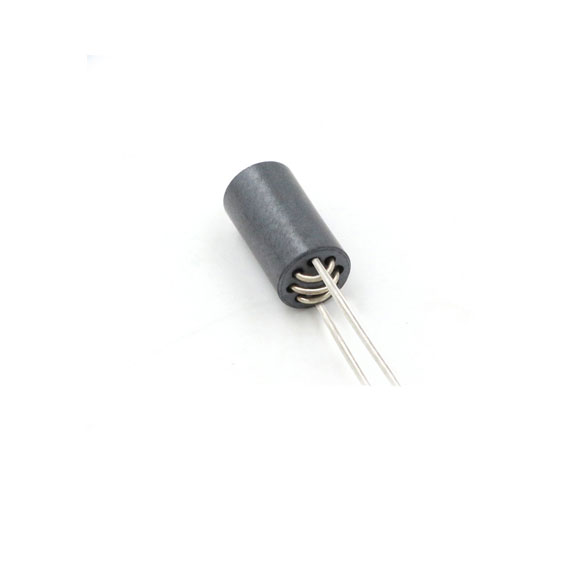

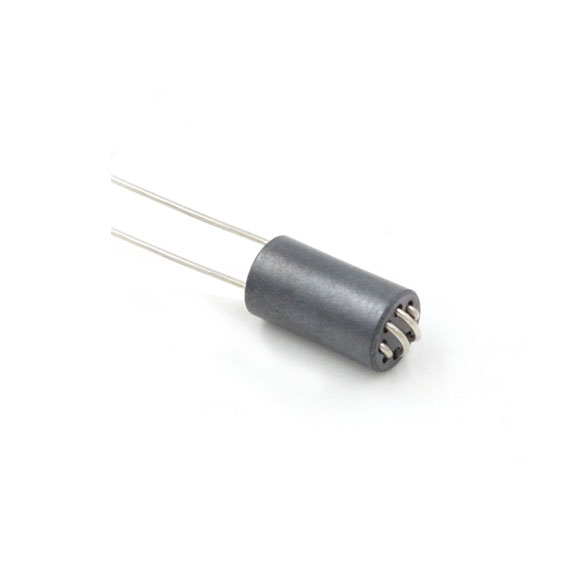

Eight-hole type
● The outer diameter of ferrite core is 5.2mm, eight 0.8mm-inner-diameter holes distribute uniformly on the cross section of the ferrite core.
● Salient effect on suppressing noise of wideband, different winding mode can reach different effects.
● Using 2 or 3 windings to make a common mode bead is feasible to suppress noise interfering common mode signals.
● The rated current is 3A.
● Suitable for wave soldering process.
Eight-hole type
● Mainly used for various PCB, externally filter EMI.
● Filtering DC power supply and signals.
