Differential mode

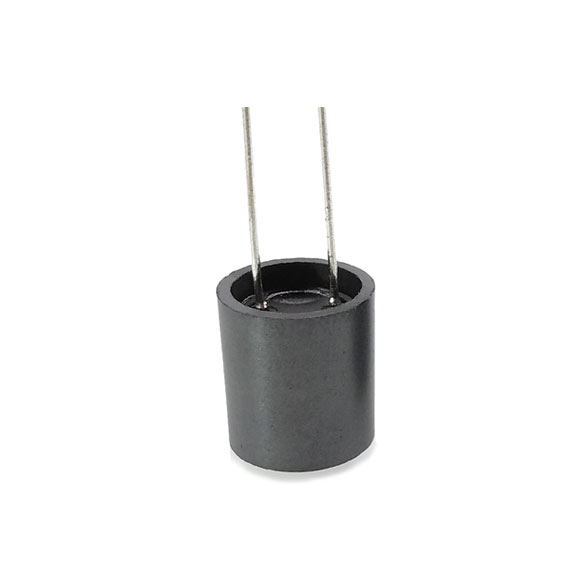

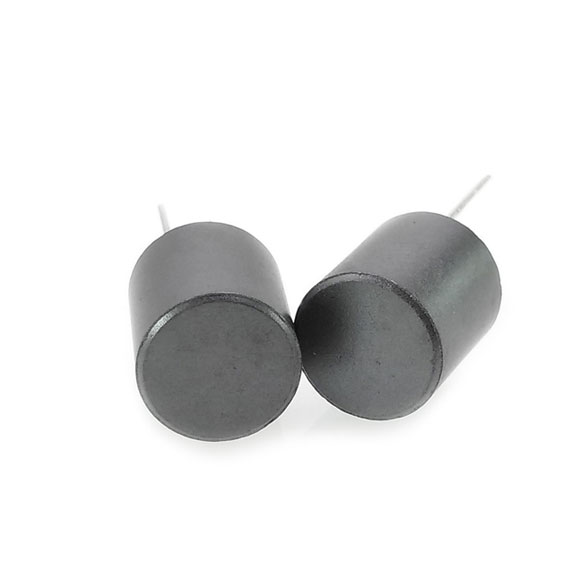

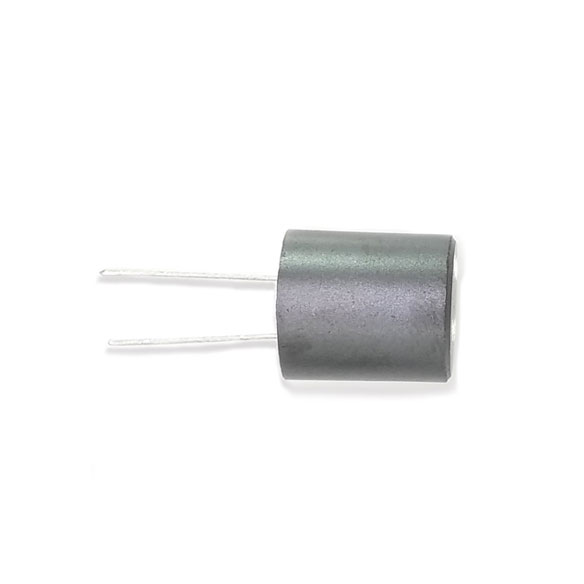

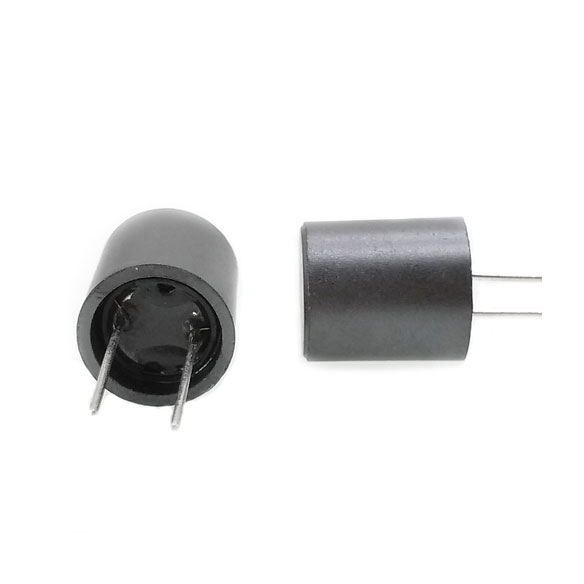

Shielded drum inductor
● Mainly used for choking current.
● Applicable to wave filtering at high or low frequency range.
● Common-used drum inductor is regarded as the vertical version of axial inductor, it's similar to axial inductor concerning applications. But it contains a type that may have a bigger volume, correspondingly the current is also increased to a certain extent. Mostly, the enamelled wire is directly wound on the framework, then put the ferrite core, copper core or iron core into it to increase inductance.
Shielded drum inductor
● Mainly used in circuits of household electrical appliance and industrial machine for choking current.
● Can be used as spike coil in wave filters, also applicable to communication devices.
● Drum inductor's application: energy-saving light, alarm, MODEN, LED, MP3, digital camera, PDA palm-held computer, power supply module, EL backlight, network communication, electronic toy, satellite receiver, communication devices, fax, etc.
P/N Description:
RIT 1012 302 M
RIT --------------- Series name
1012 ------------- Dimensions
302 --------------- Inductance【302=3.0mH】
M ---------------- Tolerance【M=20%】
