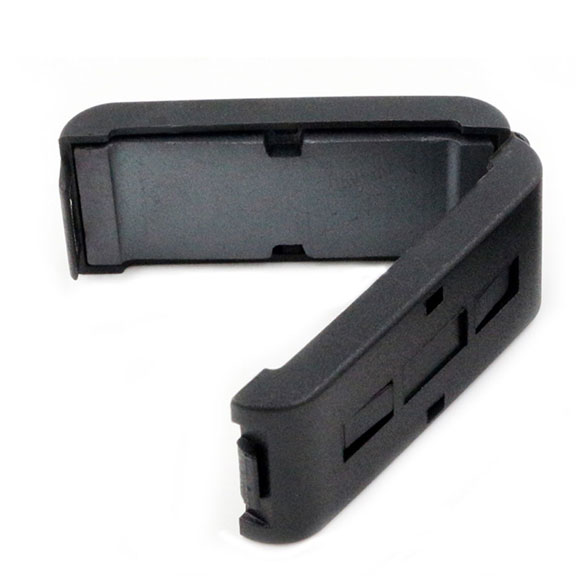

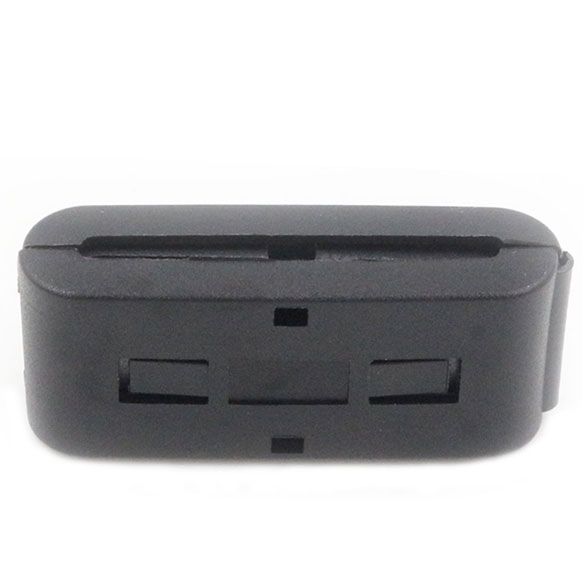

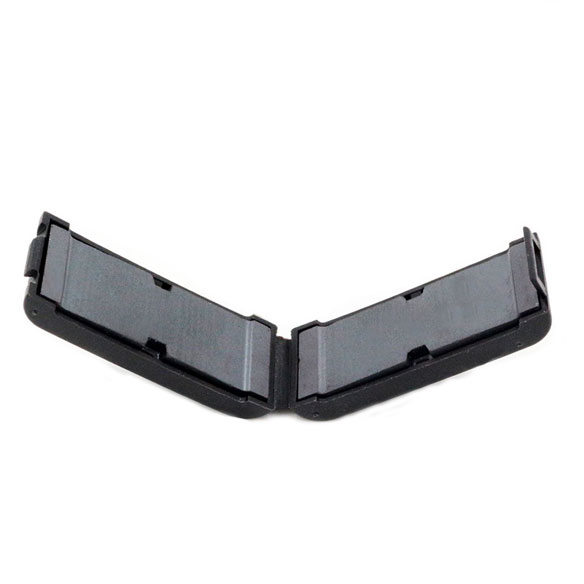

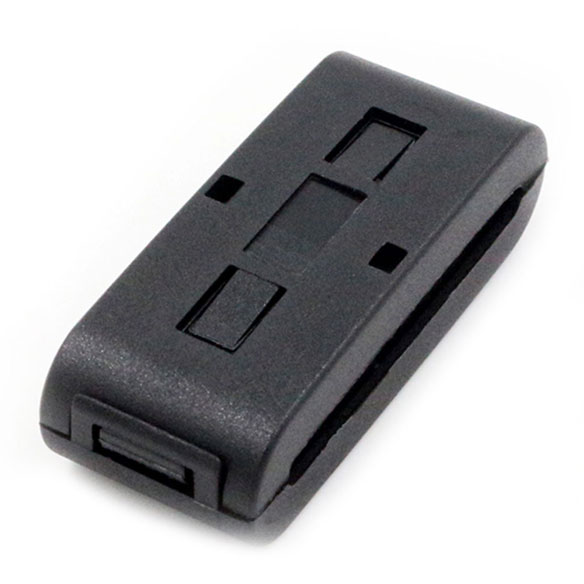

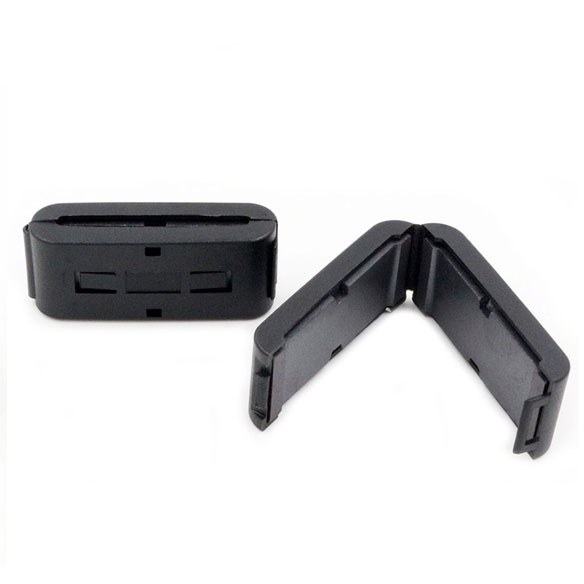

—— Clip-on ferrite core ——

FC Series


● Clip-on ferrite core, as known as ferrite filter, is an effective and swift solution to suppress EMI/EMC, so as to improve the integrity of signals.

● Made of the combination of plastic shell and ferrite core, internally with self-adjusted fastening, it can be directly installed on wire without the necessity of injection molding.

● It's specially designed for flat wire, with assorted types and shapes for choices. Please contact our sales representatives if customization is needed.

● In pratical applications, properly increasing applied quantities and winding turns according to over-standard frequency points and wire diameters, can reach a better performance.

● In light of the variety of working frequencies, the core material has been developed into many different kinds to cover a wider application fields.

FC Series


● This kind of product is mostly used on round wires or cables.

● Apllicable to all consumer-electronics-related wires, such as power line, audio line, AV line, data line and various computer wires.

● For applications of industrial and military wires, please consult our relative staff about products of corresponding classes.

● While loading a high current on the products, it's necessary to pay attention to the problem of magnetic saturation.


                                                                     P/N Description:

                                             A2 FC 54.4*13*44*18.4-2.0

                                              A2 --------------- Material code


                                                                     FC --------------- Appearance【FC=Clip-on flat type】


                                                                     54.4 ------------- Shell's length


                                                                     13 --------------- Shell's height

                                                                     44 --------------- Ferrite core's internal diameter

                                                                     18.4 ------------- Shell's width

                                                                     2.0 --------------- Ferrite core's internal height

Clip-on ferrite core product catalog
