—— Clip-on ferrite core ——

RC Series

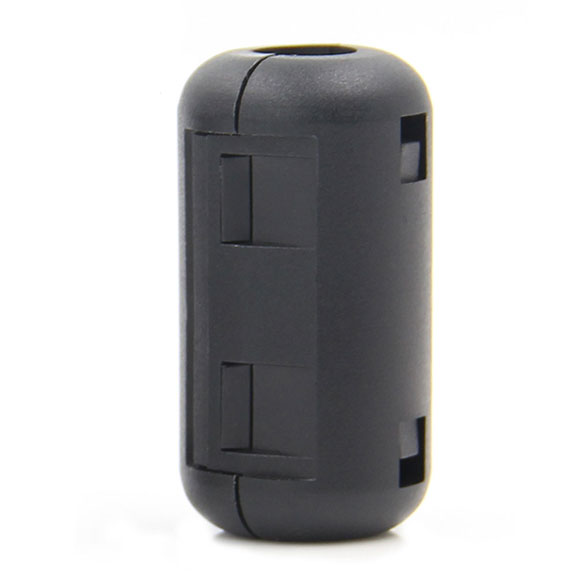

Clip-on ferrite core, as known as ferrite filter, is an effective and swift solution to suppress EMI/EMC, so as to improve the integrity of signals.

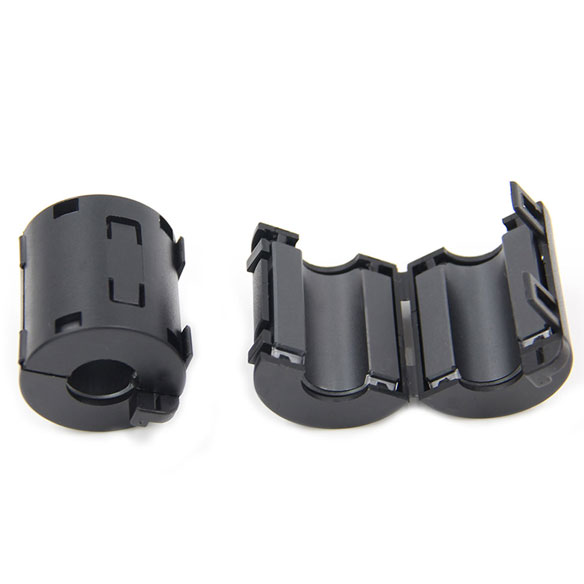

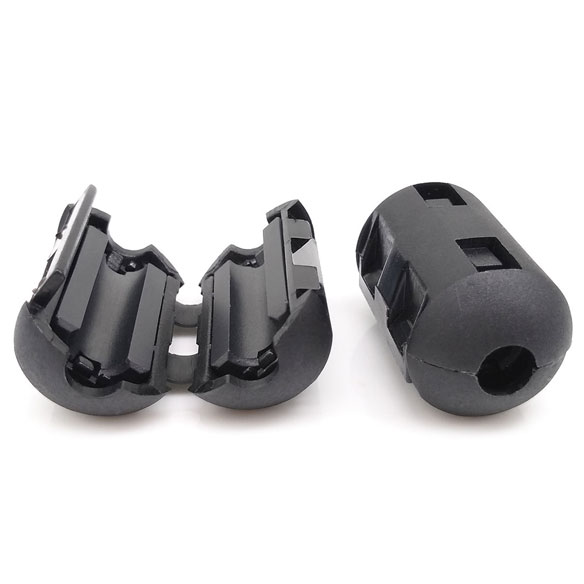

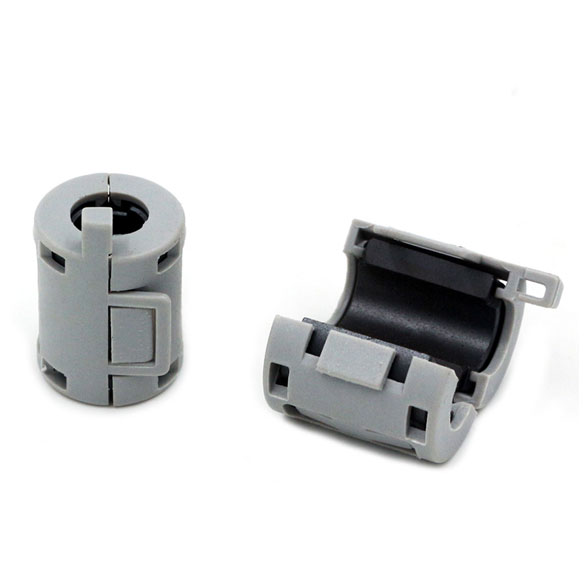

● Made of the combination of plastic shell and ferrite core, internally with self-adjusted fastening, it can be directly installed on wire without the necessity of injection molding.

● It's designed for round wire whose diameter varies from 3.5~15mm, with assorted types and shapes for choices.

● In pratical applications, properly increasing applied quantities and winding turns according to over-standard frequency points and wire diameters, can reach a better performance.

● In light of the variety of working frequencies, the core material has been developed into many different kinds to cover a wider application fields.

RC Series


● This kind of product is mostly used on round wires or cables.

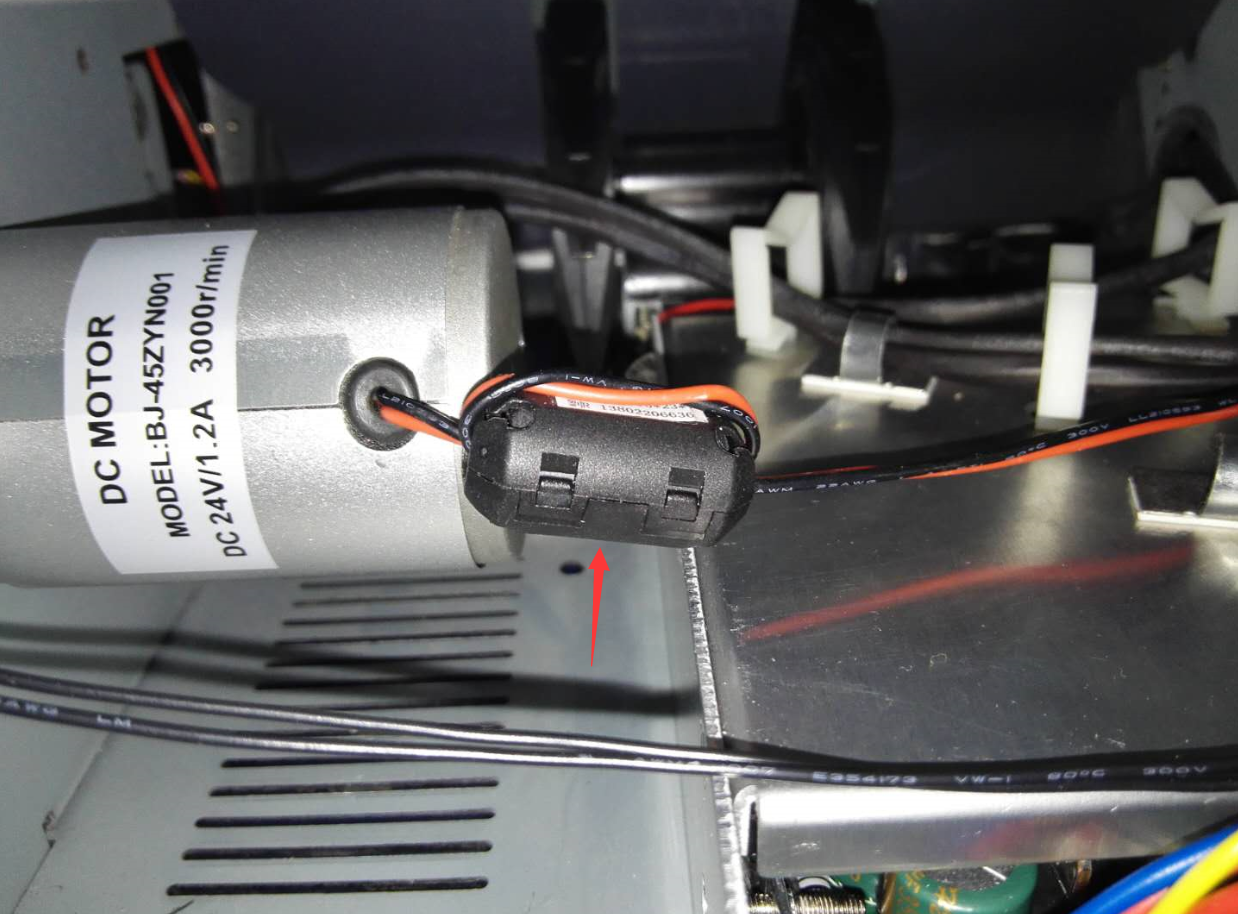

● Apllicable to all consumer-electronics-related wires, such as power line, audio line, AV line, data line and various computer wires.

● For applications of industrial and military wires, please consult our relative staff about products of corresponding classes.

● While loading a high current on the products, it's necessary to pay attention to the problem of magnetic saturation.


                                       P/N Description:

                                      A2 RC 16*28*9-MB

                                                          A2 ----------- Material code

  RC ----------- Appearance【RC=Clip-on round type】

     16 ----------- Internal ferrite core's outer diameter (mm)

                                                          28 ----------- Internal ferrite core's height (mm)

     9 ------------ Internal ferrite core's inner diameter (mm)

      MB ---------- External plastic shell's color【MB= Black】


Clip-on ferrite core product catalog
