—— CHOK Series ——

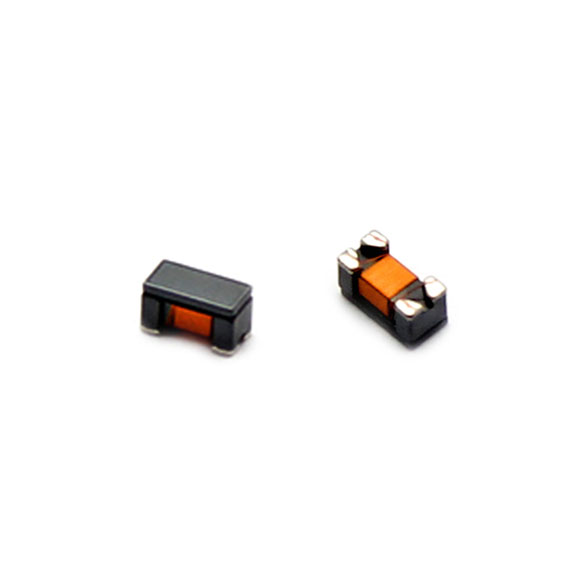

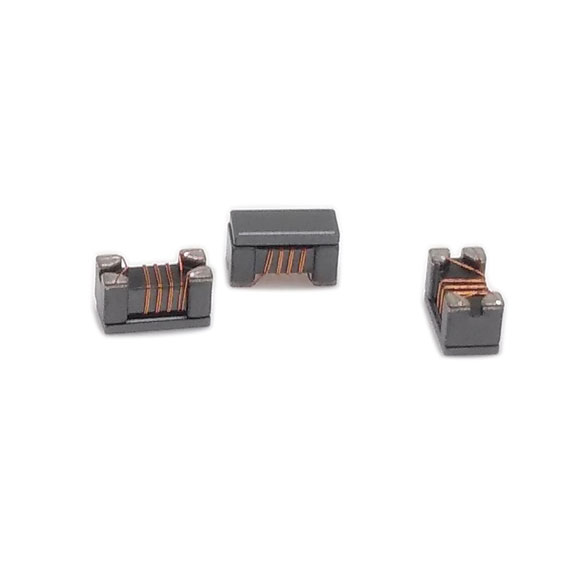

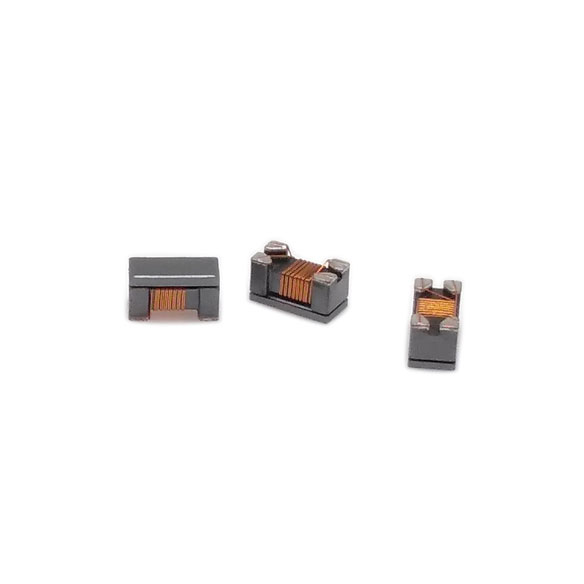

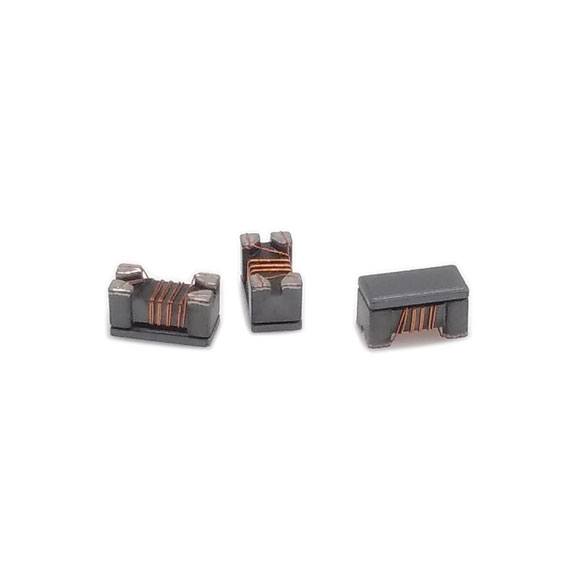

CHOK 3216
● Reserving the characteristics of common mode inductor, this winding common mode filter achieves obvious miniaturization and shortening in appearance.
● The small-size SMD design, applicable for reflow soldering, expedites the speed of automatic production.
● The standard size of 1206 inch highlights the product feature of thinning.
● The two-in-two-out design of winding mode can solve high-frequency EMC noise more efficiently.
● The impedance against common mode noise spans from 67Ω to 2200Ω, which gives play to a great effect of suppressing noise.
● Since differential-mode signal is suppressed in a lower level, there is little effect on high-level signals.
● The addition of top-plate make it more convenient for surface adsorption.
CHOK 3216
● Used for common mode noise which may affect high speed differential power line.
● USB lines of computers and rated devices.
● 1394 line and ETHERNET line of computers, STB, etc.
● LVDS and Panel Link line of liquid crystal display panels.
P/N Description:
CHOK 3216 S 900 T
CHOK -------- Series name
3216 --------- Size code
S ------------- Material code
900 ----------- Impedance【900=90Ω】
T ------------- Tape packaging
